Description :

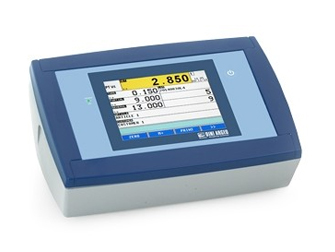

Weight indicator which is suitable tomanage digital load cells for weigh bridges. It allows the visualization of all the data related to the weighing and the personalization of the screens, greatly simplifying the operations of the user. Equipped with 3 serial ports, Ethernet port, transmission protocols for data communication, fully configurable printouts, integrated alibi memory and input for barcode/badge reader. CE-M approved (OIML R-76 / EN 45501).

Main Features :

• Power supply unit specifically for digital load cells.
• Protection board for power supply circuit and communication between digital load cells and self-resetting Surge Arresters..
• Backlit graphic display with touch screen technology, lxh= 120x90mm size. Screens completely customizables.
• Multilanguage software.
• QWERTY, AZERTY o QWERTZ keyboard, selectable.
• ABS waterproof enclosure, with new IP65 protection system (IP40 on version with thermal printer).
• Dimensions: 278x125x186 mm.
• Suitable for use on the table, column, or wall.
• Real time clock and permanent data storage.
• Fitted alibi memory, integrated on the motherboard.
• Slot for built-in micro SD for recording logos (upon request).
• Functions available with DINITOOLS utility
  • Configuration, data entry and print formatting.
  • Recording and filing of all the information on PC.
  • Complete retrieval of the configuration.
  • Instrument calibration with numeric values.
  • Customization of the screens.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• 4 independent analogue channels (up to 2 in the E-AF03 version) for reading of the weight.
• Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
• Management of the most common digital load cells for weigh bridges (with DIGIKIT option and AF03GT firmware), also CE-M approved applications.
• Connectable to printers and labellers with free programmation of the printout formats.
• 110-240 Vac power supply.
