Bearing structure formed by reinforced steel beams
Sturdy load surface in very thick antislip sheet steel, which guarantees extreme rigidity with every type of vehicles
Anticorrosive treatments and high-resistance painting.
Double shear-beam IP68 load cells, C3 precision class, EN45501 approved, complete of spherical selfcentering oscillating joints, for compensating the thermal expansions, guaranteeing safe weighs and long term accuracy.
The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
Inspected trapdoors for cells maintenance.

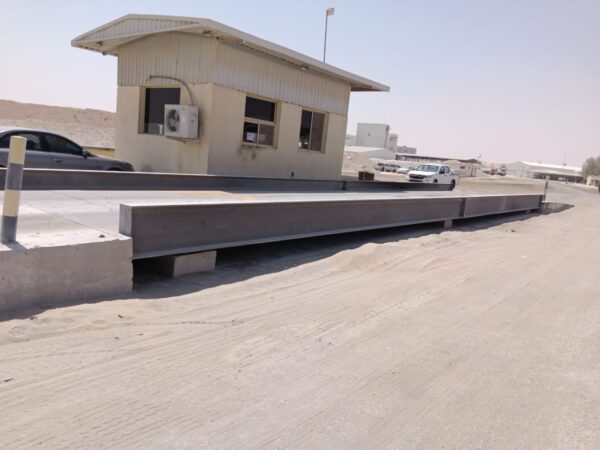

Reduced height (up to 370 mm from the resting surface).
IP68 junction box, complete of 30m connection cable to the indicator.
Wide range of available weight indicators and accessories.
